Label and web inspection, high performance
Distributed by eGraf Equipos, manufactured by Checkline.
Checkline strobe lamps are high performance lamps, designed for label inspection and web inspection.
Great for demanding applications in the printing industry, such as rewinders, slitters and printing presses.
They produce bright, sharp images with even light distribution.
With external inputs to synchronize the strobe lamp with a remote sensor.
High performance
Bright and sharp
Even light
LED stroboscopic lamps
• High performance LEDs
Bright and sharp images with even light distribution.
• Bright and sharp
Adjustable flash duration for an image with optimal brightness and sharpness settings

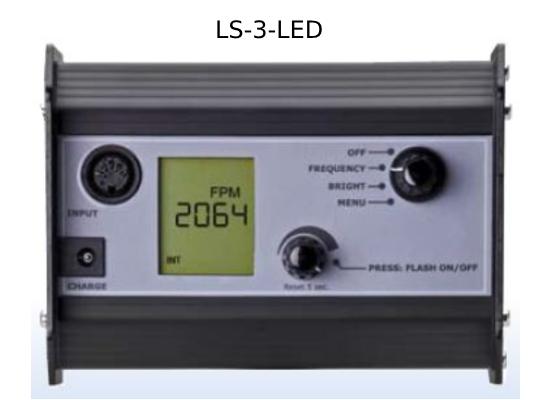

• LS-3-LED model
Uniform light distribution in bandwidths up to 10" (25cm)
40 super-bright LEDS in 10 x 4 array
5,000 Lux light intensity
30 to 300,000 FPM flash range (flashes per minute)
Adjustable flash duration for an image with optimal brightness and sharpness settings
External input for external sensor flash control

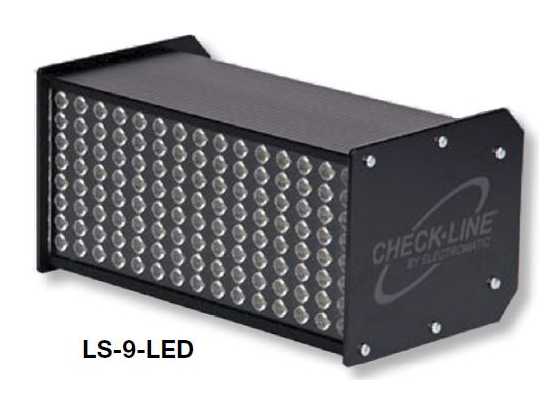

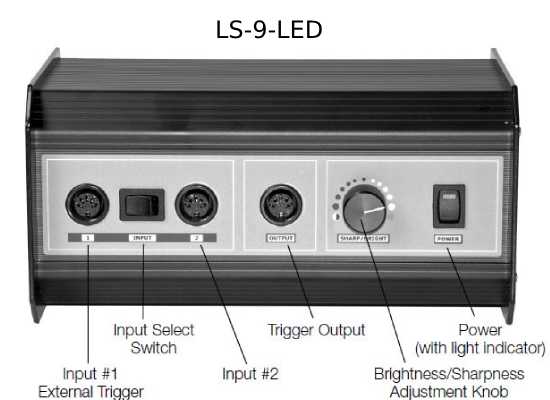

• LS-9-LED model
Uniform light distribution in bandwidths up to 20" (50.8cm)
120 super-bright LEDS in 15 x 8 array
7,500 Lux light intensity
0 to 120,000 FPM flash range (flashes per minute)
Adjustable flash duration for an image with optimal brightness and sharpness settings
External input for external sensor flash control
• More models, accessories and spare parts available. Contact us for more information
